Description

APPLICATIONS:

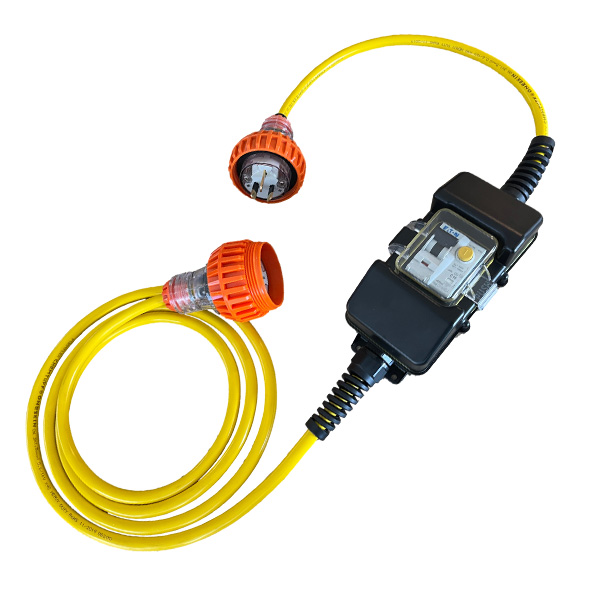

Power portable tools including welders, floor sanders, compressors and grinders from a domestic power outlet legally and safely using a Sitemate power supply adaptor.



PRODUCT FEATURES:

  • Built tough for industry
  • Class H certified for general industrial use
  • Strain relief glands for added cable protection
  • User resettable overload protection for added safety/compliance
  • 4 x fixing holes in base for mounting if required
  • Available in 2, 10, 15, 20 & 30 metre length options
  • Designed, manufactured, tested and certified in NZ

Note: this device cannot convert 10 Amps into 15 Amps. This product allows you to plug in and operate a portable 15 Amp device whilst ensuring the 10 Amp circuit cannot be overloaded.

Specifications

CONSTRUCTION:

  • Cable: Heavy duty flexible cable 0.6/1kV 90°C
  • Connector: IP66 Connector AS/NZS 3120:2011
  • Plug: IP66 Plug AS/NZS 3112:2017
  • Protection: 2300W overload protection
  • Quality Eaton Type ‘A’ FS RCBO for NZ use
  • Enclosure: IP44, IK08 rated

CHARACTERISTICS:

  • Relevant standards: AS/NZS 3100:2017, AS/NZS 3190:2017

Data Sheet

Sitemate SM2 Datasheet

Compliance

Sitemate SM2 –  Supplier Declaration of Conformity (SDOC)
